Omron PLC training — Sysmac Studio, NJ / NX

Omron is the third brand in the SA controller pecking order — behind Siemens and Rockwell on raw install-base counts but ahead of almost everyone else when you start counting OEM machines. Anywhere a Japanese-built packaging machine, a pharma fill-and-finish line, or a high-speed cartoner has landed in a local factory in the past twenty years, the cabinet inside is more likely than not Omron. The brand has a quiet but real presence in Johannesburg and Cape Town through Omron Electronics SA and a network of distributor partners, the spare parts pipeline is reliable, and the modern Sysmac Studio environment on the NJ / NX line is genuinely one of the better PLC IDEs to learn on if you are starting from scratch in 2026. If you are weighing Omron PLC training against the bigger two brands, this page is the honest take from an independent simulator and curriculum that is not an Omron partner and has nothing to sell you on the Omron side beyond a free sandbox.

Where Omron shows up in SA

Packaging is the headline. The bulk of imported Japanese OEM machinery — flow wrappers, cartoners, case packers, pick-and-place delta robots on confectionery and snack lines, vertical form-fill-seal baggers — lands in SA with Omron control inside, and the maintenance technician who inherits that machine inherits Omron whether the rest of the plant is Siemens or AB. Several local FMCG plants in Gauteng and the Western Cape have whole packaging halls full of Omron-controlled OEM kit feeding into a Siemens-controlled process side, and the techs who can move fluently between the two are paid for the privilege.

Pharma fill-and-finish is the second cluster. South African pharmaceutical manufacturers running tablet-press lines, vial-filling machines and blister packaging frequently sit on Omron at the machine level because the European and Japanese pharma OEMs default to it. The motion-control angle matters here — high-speed bottle handling, indexing tables, and servo-driven cap torquing are the kind of jobs that play to Omron's strengths.

Semiconductor packaging and electronics assembly is the third, smaller cluster — a handful of contract manufacturers around Cape Town and Pretoria run pick-and-place machines and reflow lines on Omron, plus inspection equipment with Omron vision systems integrated on the same controller as the motion. Food processing OEM machines — slicers, dicers, depositors, a lot of dairy filling kit — make up the fourth cluster and overlap heavily with the packaging story.

The thread running through all four clusters is motion. Omron's wedge against Siemens and Rockwell in SA is not the cost or the brand recognition — it is that the modern NJ / NX line treats motion as a tag, and that design choice cascades through every motion-heavy application the brand wins.

The hardware family

Omron's controller line is wider than people realise from the outside. Five live ranges plus a still-massive legacy install base — and the dividing line that matters most is between the legacy CP / CJ family programmed with CX-Programmer, and the modern NJ / NX family programmed with Sysmac Studio.

The compact entry point is the CP series. The CP1E is the cost-engineered variant, the CP1L is the slightly more capable mid-compact, and a typical catalogue number is CP1L-M40DR-A — 40 I/O, relay outputs, AC power. CP1L sits on smaller machines, simple OEM panels and basic standalone equipment. It is programmed with CX-Programmer, takes the legacy CIO-style addressing, and is the controller a learner is most likely to bump into on older imported kit.

The mid range is the CJ2 family. CJ2M-CPU33 is a typical mid-tier CPU — modular, rack-based, takes CJ-series I/O cards, and was the workhorse of the Omron mid-market through the late 2000s and 2010s. The CJ2 install base in SA is enormous because anything imported in that window has it inside. The brand has officially moved the new-project recommendation forward to NX, but the CJ2 maintenance market is alive and will be alive for another decade at least.

The modern flagship line is NJ / NX. The NJ501-1300 is the original Sysmac machine controller — a compact, motion-capable PLC introduced in 2011 that ran on the new Sysmac Studio IDE and was Omron's pivot away from CX-Programmer. The NX1P2-9024DT is the smaller modern variant — a brick-style controller with onboard I/O, EtherCAT for motion, and a lower price point that lets it land in OEM machines that would previously have run a CJ2 or a CP1H. The NX102-9000 and the larger NX5 / NX7 line sit above it for higher I/O counts and more demanding motion. All of them run the same Sysmac Studio IDE and the same NX-bus / EtherCAT I/O ecosystem, which is the point — Omron's modern line is a unified architecture in a way the legacy CP / CJ line never was.

The dividing line is real. CP and CJ live in CX-Programmer and the older CX-One suite. NJ and NX live in Sysmac Studio. The two do not interoperate. Pick the side of the line you actually need before you spend weeks learning the wrong IDE.

CX-Programmer vs Sysmac Studio

CX-Programmer is the legacy IDE for CP and CJ. It ships as part of CX-One, which is the bundled Omron engineering suite — CX-Programmer for the PLC, CX-Designer for the HMI screens on Omron NS / NA panels, CX-Drive for servo and inverter parameter setup, CX-Integrator for network configuration, plus a handful of smaller utilities. CX-One is showing its age. The IDE looks like a Windows XP-era application because that is roughly when it was last meaningfully redesigned, the project-tree conventions are old-school, and the workflow for mixing PLC and HMI and drive configuration involves jumping between separate applications rather than a unified project. It works, the install base is huge, and learning it is unavoidable if you are going anywhere near a CJ2 or a CP1L. Just know what you are signing up for.

Sysmac Studio is the modern IDE for NJ and NX. It is a single project that holds your PLC code, your motion configuration, your safety configuration, your EtherCAT topology, your HMI screens (for Omron NA-series panels) and your vision system setup in one tree. The transition from CX-One to Sysmac Studio is similar to the Schneider Unity Pro to Control Expert transition or the Rockwell RSLogix 5000 to Studio 5000 transition — same brand, modernised wrapper, much better integration. Sysmac Studio is closer to a contemporary IDE in look and feel than CX-Programmer is, the variable system is properly tag-based, and the motion integration is the headline feature: motion axes are first-class objects in the project, configured once and addressed by name from the PLC code without the parallel-universe drive configuration that CX-One forces.

The opinion. For new SA techs aiming at packaging-machine maintenance, Omron is a credible third option after Siemens and Rockwell — and the Sysmac Studio learning curve is shorter than TIA Portal's. If you are choosing where to spend your first six months of brand-specific learning and packaging is the sector you want, Sysmac Studio on NX1P is a defensible answer. CX-Programmer you will pick up later, on the job, when an old CJ2 lands on your bench.

Languages and addressing

Omron supports the IEC 61131-3 family — Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Sequential Function Chart (SFC). On Sysmac Studio with NJ / NX you also get a more proper tag-based variable system with named structured types, arrays of structures, and the kind of POU organisation an IEC 61131-3 engineer expects. On CX-Programmer with CP / CJ you live with the legacy memory map.

The legacy addressing convention is CIO-style. CIO 0.00 is bit zero of word zero in the CIO (Core I/O) area — the area that maps to physical I/O. H0.00 is bit zero of word zero in the H (Holding) area, which is battery-backed memory that survives a power cycle. W0.00 is bit zero in the W (Work) area, which is volatile internal scratch memory equivalent to a Siemens M-bit or a Schneider %M. D0 is data memory word zero, equivalent to a Schneider %MW or a Siemens DB word, used for analog values, recipe data and any non-bit storage. A short snippet of legacy ladder logic in Omron addressing reads:

LD   CIO 0.00      // start button (physical input)
OR   W0.00         // sealed-in coil
ANDNOT CIO 0.01    // stop button (physical input, NC)
OUT  W0.00         // internal coil
LD   W0.00
OUT  CIO 100.00    // motor output
MOV  D0  D10       // copy setpoint to working register

On NJ / NX in Sysmac Studio the same logic uses named tags — bStartPB, bStopPB, bMotorRun, iSetpoint — declared in the Global or Local variable list and bound to physical I/O through a separate I/O map. The CIO / H / W / D underlay still exists for backward compatibility but you generally do not address it directly in new NJ / NX projects.

Built-in simulator

Sysmac Studio ships with a built-in Simulator that runs the NJ / NX firmware on your engineering laptop without a real controller on the bench. You write your PLC code and your motion configuration in Sysmac Studio, you switch the project target from a real NJ501 to the simulator, and you can step through the program, force I/O, watch variables, and exercise motion axes in simulation before any hardware is wired. The Sysmac simulator is genuinely good — better than several of the brand-equivalent simulators — because it actually runs the same firmware logic the real controller runs rather than a parallel software model that approximates the controller behaviour. For motion in particular, this matters: PLCopen Motion function block behaviour in the simulator matches the hardware closely enough that you can debug profile-generation issues in simulation.

CX-Programmer ships with CX-Simulator for the legacy CP / CJ side. It is older, less polished, and limited to the legacy memory model, but it works for verifying ladder logic against a virtual CJ2 or CP1L. If your only access to Omron is through CX-Programmer it gets the job done.

The honest position. The Sysmac Studio simulator is the part of the Omron ecosystem that is most underrated by people who have not used it. The licence cost of Sysmac Studio is the friction — the IDE is not free, you go through a Sysmac Studio licence purchase or a partner — but once you have access, the simulator is enough to learn against without owning hardware.

Where our browser simulator fits

Our simulator runs in any current browser tab — no Windows install, no Sysmac Studio licence, no Omron account. The scan engine is IEC 61131-3 compliant, so the rung-by-rung evaluation, the timer behaviour with TON / TOF / TP, the function block instance data persistence and the SR latch semantics all match what you will see on a real NJ or NX controller. The IEC 61131-3 standard sits at iec.ch/standards/iec-61131-3 and is the cross-vendor reference for ladder semantics — building those reflexes in our sandbox transfers directly to Omron, just as it transfers to any other IEC-compliant runtime.

The Omron-specific layer sits on top. The instruction set on NJ / NX includes the standard PLCopen Motion function blocks — MC_Power to enable an axis, MC_Home to run the homing sequence, MC_MoveAbsolute for absolute positioning moves, MC_MoveRelative for relative moves, MC_Stop for controlled deceleration, MC_CamIn and MC_GearIn for cam and gear synchronisation. These are PLCopen-standardised function blocks shared across brands that implement PLCopen Motion (Beckhoff, Schneider, B&R) but the project structure around them, the axis configuration, and the EtherCAT slave assignment is Omron-specific. The Omron product reference at automation.omron.com is the canonical source for catalogue numbers and motion library documentation.

The split is this. Use our browser simulator to build IEC 61131-3 reflexes — ladder fluency, timer patterns, function block instance behaviour, sequencer state machines — in five-minute increments on any laptop. Then move to Sysmac Studio with its in-built simulator and layer the Omron-specific motion on top: axis configuration, PLCopen Motion function block sequencing, cam profile design, EtherCAT topology. The motion-as-a-tag concept is the differentiator and it is worth the focused practice once your IEC fundamentals are solid.

Cert path

Omron training in South Africa is delivered through Omron Electronics SA in Johannesburg and through distributor-led partner courses. The local courses run periodically — basic CX-Programmer, intermediate Sysmac Studio, and motion-specific courses on NJ / NX with PLCopen Motion — with pricing typically R10,000 to R30,000 depending on length and whether hardware bench time is included. The courses are taught by certified Omron trainers and the completion certificate is the most credible Omron-specific credential available locally.

Globally, Omron does not run a flagship certification programme in the same league as Siemens SITRAIN or Rockwell's official Studio 5000 courses. The training is more partner-driven, more regional, and less standardised across countries. The Omron-issued certificates are useful internally to your employer and within the Omron channel; they are not portable in the way an ISA CCST is.

The CCST (Certified Control Systems Technician) from the International Society of Automation remains the more portable credential for a working SA technician across any brand. It is brand-agnostic, internationally recognised, and tests instrumentation and control fundamentals rather than vendor-specific IDE knowledge. If you can only afford one paid certification and you are uncertain which brand you will spend your career on, CCST is the better long-term spend. Stack an Omron partner course on top later if a job requires it. The broader Omron product landing page sits at omron.com/global/en/products for a full view of the controller and motion catalogue.

Deep dives on Omron

The brand pillar above is the overview. The pages below are the topic-by-topic deep reads for someone who has chosen Sysmac as their primary platform and wants the specifics. Each one is a single-topic page with worked Sysmac Studio examples and the kind of detail that takes a programmer past the surface.

1. Omron Sysmac Studio variables: scope, datatypes, structures — the variables-and-scope page that unblocks newcomers writing their first POU.
2. Omron NX vs NJ controllers: motion-heavy vs IO-heavy projects — the platform-pick page for the NX1P / NX102 / NJ501 split.
3. Omron NS vs NA HMIs: legacy vs current Sysmac integration — the HMI-pick page, with the migration math for brownfield NS sites.

Where you'd work with Omron

Omron's South African footprint follows packaging-machine OEMs and the smaller motion jobs the bigger brands skip. Six city pages cover the regions where Sysmac is the platform a panel shop quotes first.

On the Highveld, Omron PLC training in Johannesburg is the page for the East Rand packaging belt and the SMT electronics shops that need NX1P motion on a budget, and Omron PLC training in Pretoria is the page for the Tshwane Automotive SEZ — the line-side small-machine motion work the bigger ControlLogix retainers don't pick up.

Down on the coast, Omron PLC training in Cape Town is the page for the Western Cape packaging-machine OEMs — Cape Town packs more local machine builders per kilometre than any other SA city, and a meaningful share of them ship Omron-controlled. Omron PLC training in Port Elizabeth covers the automotive components feeders into Coega, and Omron PLC training in Durban is the page for the light manufacturing and small packaging cluster around Pinetown.

In the Free State, Omron PLC training in Bloemfontein is the page for the F&B and agri-processing sites that prefer NJ or NX controllers for their dairy, beverage and meat lines.

What we don't claim

We are not an Omron-authorised training centre. Omron Electronics SA runs the official Omron training in this country and we are not in that programme. We do not issue Omron-equivalent certificates and we are not on the Omron certified-trainer list. We are not SAQA-registered and we have not been nationally accredited. We are also not MerSETA-accredited. We have not pursued QCTO accreditation either. Our completion certificates are course-level only and have no regulatory standing — not in South Africa and not internationally.

What we are: an independent simulator and curriculum that helps you build IEC 61131-3 reflexes before you spend time installing Sysmac Studio or CX-Programmer. The vendor IDE, the in-built simulator, and any official Omron training are separate from us. We are honest brokers. If you specifically need a SETA-aligned learnership for B-BBEE skills development reasons, we are not the right product. If you want pattern fluency before you sit down in front of Sysmac Studio for the first time, we are exactly the right product.

How to start

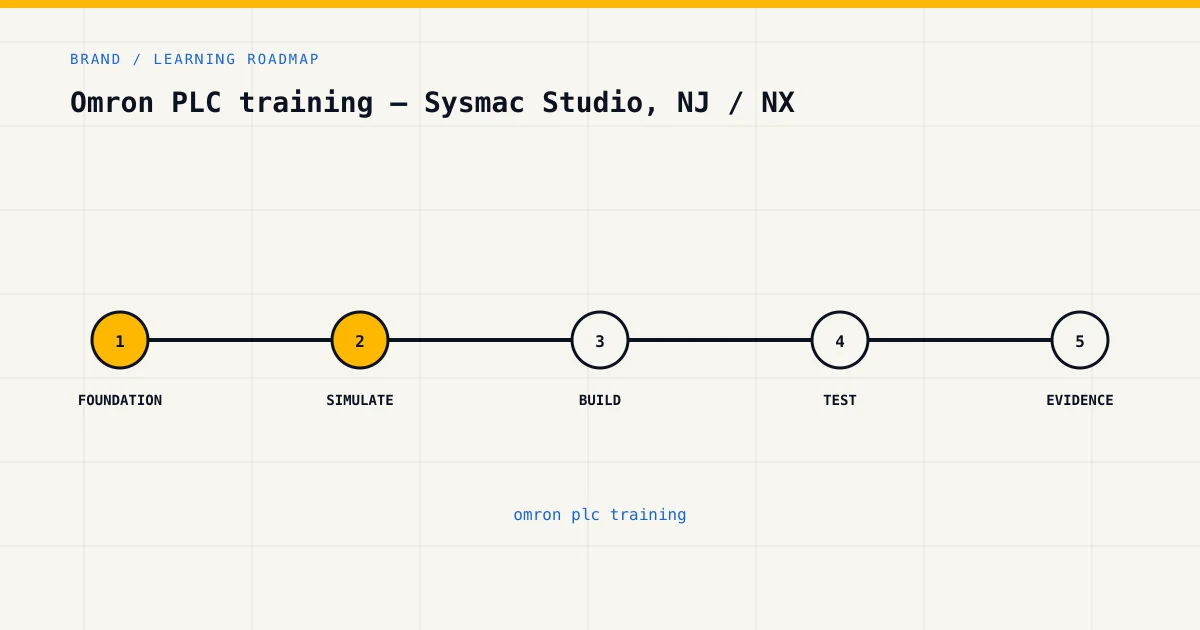

Five steps. Sandbox first — open our browser simulator, drag a contact and a coil, write your name across the screen in rungs and feel the scan engine respond. Then a CIO-flavoured ladder — write the classic three-wire start-stop with a sealed-in start, a stop button and an output coil, and consciously map the addresses to CIO 0.00, CIO 0.01 and CIO 100.00 in your head as if they were Omron CIO addresses. The point of this drill is to get you treating CIO 0.00 as functionally equivalent to a Siemens I0.0 or a Rockwell I:0/0 — different prefix, same conceptual slot in the I/O image table.

Then a sealed-in motor with overload — add a thermal overload contact in the rung and learn what a "field check" interlock looks like on Omron addressing. Then a small motion-relevant sequence — a state machine that drives a fictional axis through Idle → Homing → Ready → Moving → Stopped with timer-based delays standing in for the PLCopen Motion function block calls you will eventually make on real hardware. Even without a real MC_Home block, the state-machine pattern is the same. Then a function-block-wrapped version of the start-stop — define a reusable POU with bStart, bStop, bRun as inputs and outputs, instance it twice for two motors, and recognise that this is the IEC 61131-3 function block dressed in Omron clothing.

Free tier first — no credit card. Spend a weekend on the sandbox and the first few lessons. If the format works, move to Basic at $12 a month. Once the patterns are solid, get hold of Sysmac Studio (through your employer, an Omron distributor partner, or a trial) and rebuild the same five exercises against the in-built simulator. Most learners reach that handover point in three to four weeks of part-time practice.
